Proxy Settings

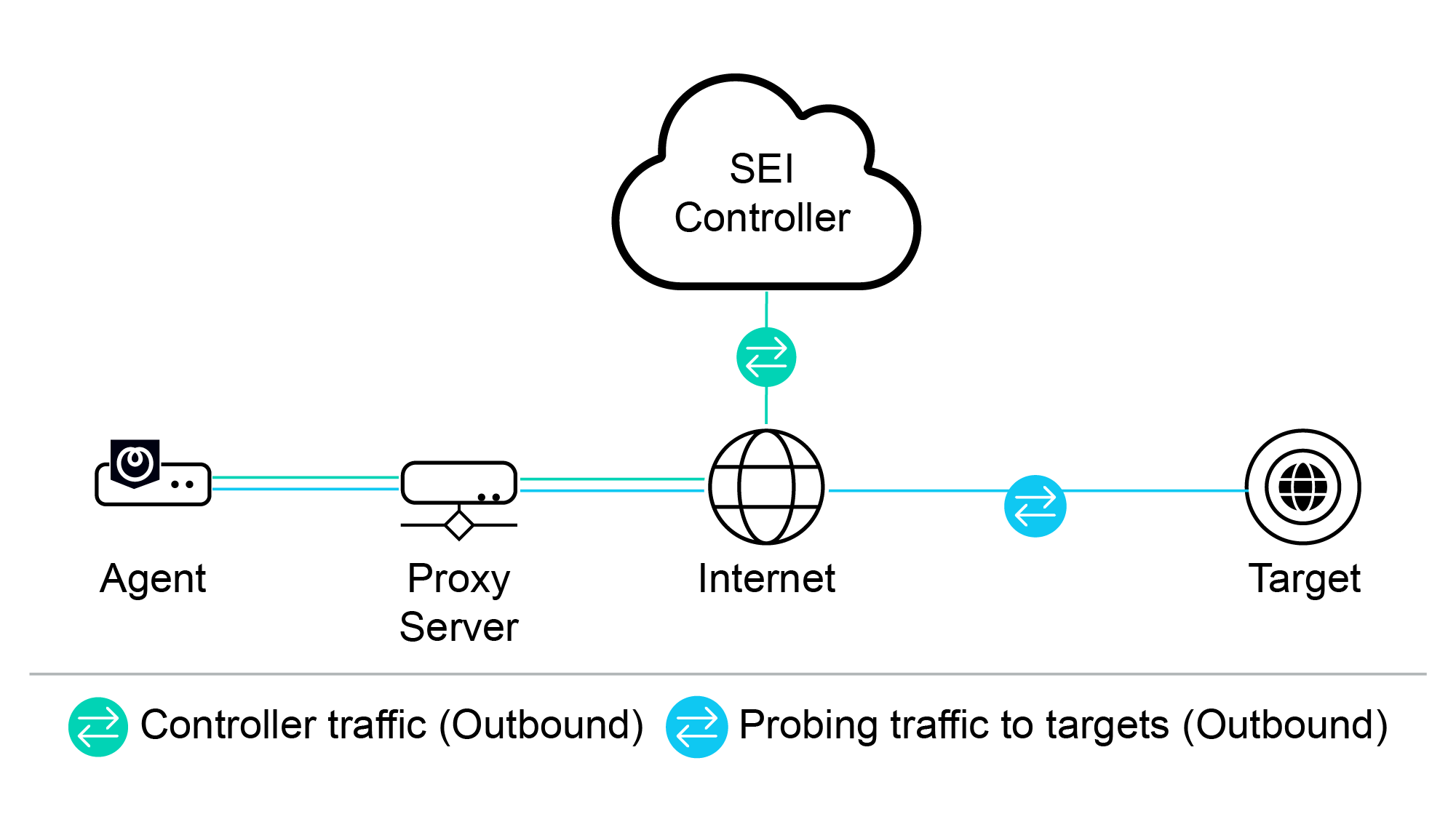

Some organizations’ security policies dictate routing outbound traffic from internal networks to the internet via a proxy server.

SEI agents support HTTP/HTTPS proxy and can be deployed in these organizations to monitor HTTP/HTTPS targets.

Outbound ICMP, UDP traffic, and inbound agent-to-agent probing cannot be routed through the proxy.

Click to expand

Environment variables

Configure proxy settings by setting the following environment variables:

Proxy	Environment Variables
HTTP_PROXY	Used for HTTP Traffic (e.g. HTTP_PROXY=192.168.1.1:8080)
HTTPS_PROXY	Used for HTTPS Traffic (e.g. HTTPS_PROXY=192.168.1.1:8080)
NO_PROXY	Addresses to bypass the proxy servers (e.g. NO_PROXY=localhost)

Static Agent for Docker and Cloud Agents
- Agents run as Docker containers.
- The proxy can be changed in the host’s Docker runtime environment settings per the instructions provided by the manufacturer of the host.
Static Agent for EdgeLQ devices
- SPEKTRA Edge and generic device like Rasperry Pi4 and Dell VEP edge servers are boot from the EdgeLQ OS.
- EdgeLQ pod manifest utilizes the same environment variables that can be inherited from the EdgeLQ configuration.
- EdgeLQ proxy settings are controlled through the API and configured by the channel partner.

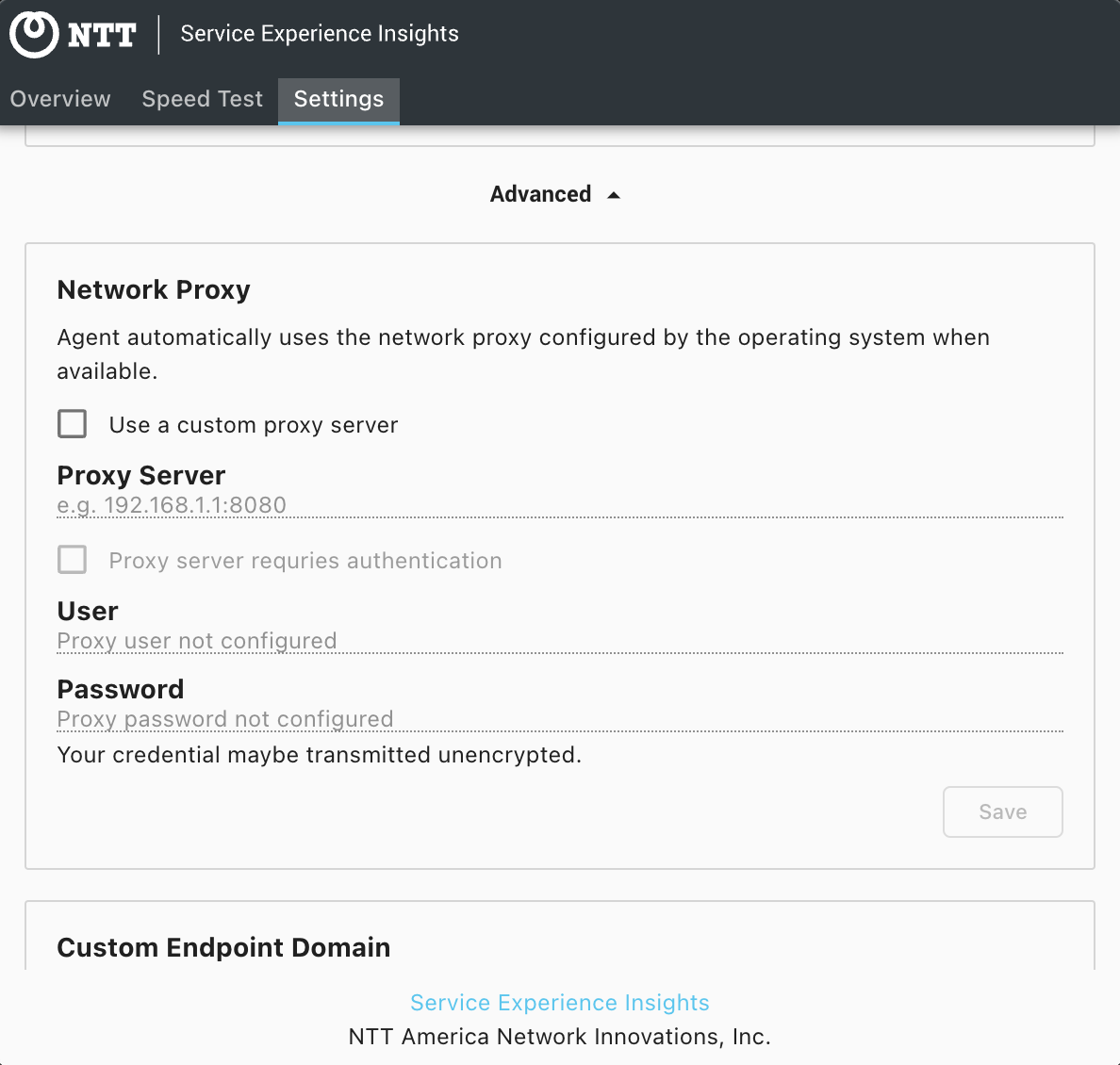

Mobile Agents for Windows and macOS
- SEI Mobile Agent uses the system’s default proxy settings by default.
- The bypass addresses are always configured to ‘localhost’.
- Override the proxy settings in the agent interface. Settings -> Advance -> Network Proxy.

Click to expand
